How to Identify Zipper Type?

Zippers are everywhere—from jackets and jeans to backpacks and tents. But not all zippers are the same. Identifying the zipper type helps you choose the right one for repairs, replacements, or custom orders.

To identify a zipper type, examine the material, tooth structure, slider design, and application. The most common types include metal, plastic (molded), and coil (nylon) zippers.

Understanding zipper types can save you time and prevent mismatched or weak zippers. Let’s explore the key methods to distinguish different zipper types.

What Are the Main Zipper Types and Their Characteristics?

Recognizing zipper types starts with knowing the most common types and their characteristics.

The three main zipper types are metal zippers¹, molded plastic zippers, and coil zippers. Each has distinct tooth structures, materials, and applications.

Let’s break down their features.

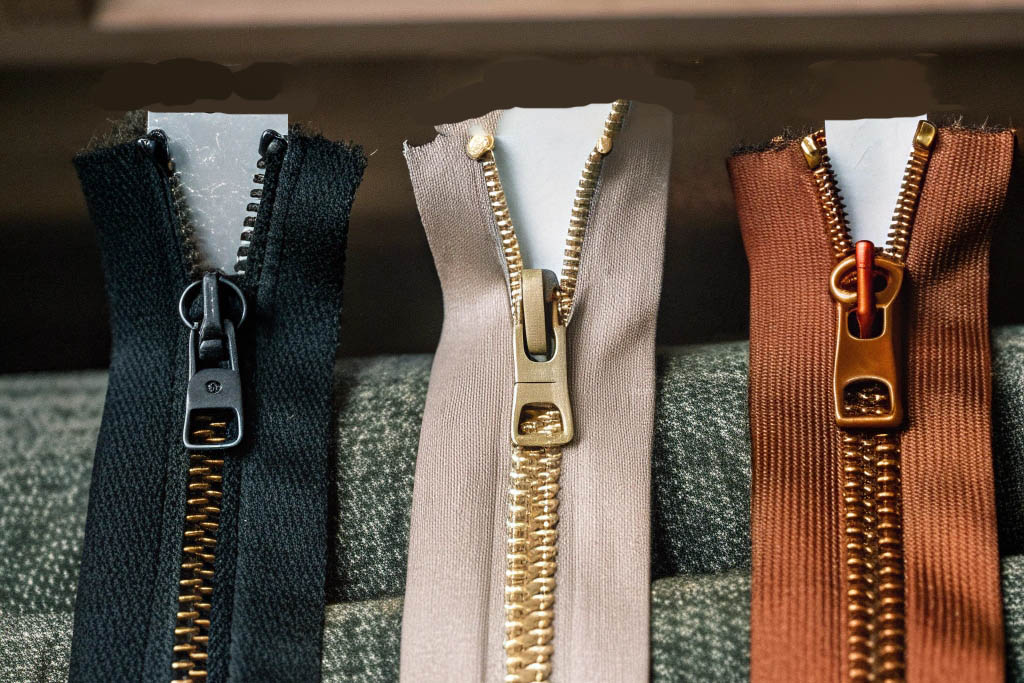

1. Metal Zippers

Metal zippers have metal teeth, which are clamped onto the zipper tape. They are strong and durable, often found in heavy-duty or fashion items.

Key Features:

• Teeth made of brass, aluminum, or stainless steel
• Visible, interlocking metal teeth
• Cold to the touch and slightly heavier than other types

Common Applications:

• Jeans and jackets
• Leather goods
• Industrial workwear

How to Identify:

• Check if the teeth are metallic and rigid.
• Tap the teeth—metal produces a distinct clinking sound.
• Look for markings like "YKK" or "Riri" on the slider.

2. Molded Plastic Zippers

Molded plastic zippers have teeth created by injecting plastic into molds. The teeth are solid, uniform, and usually larger than coil teeth.

Key Features:

• Teeth made of polyacetal (POM)
• Uniform, symmetrical teeth
• Lightweight and slightly flexible

Common Applications:

• Outdoor and sports gear
• Backpacks and luggage
• Children’s clothing

How to Identify:

• Teeth are uniform and made from hard plastic.
• The zipper feels lighter than metal versions.
• Molded teeth often have a slight sheen.

3. Coil Zippers

Coil zippers use a continuous coil of nylon or polyester sewn into the tape. They’re flexible and soft, often used in lightweight clothing.

Key Features:

• Nylon or polyester teeth in a spiral pattern
• Flexible and lightweight
• Smooth operation, even around curves

Common Applications:

• Activewear and casual wear
• Tents and sleeping bags
• Fashion accessories

How to Identify:

• Teeth look like a spiral or ladder when viewed from the side.
• The zipper bends easily.
• The teeth are not individually molded but coiled into the fabric.

How to Identify Zipper Type by Appearance?

Visual inspection is the easiest way to identify zipper types.

To identify zippers by appearance, check the material, tooth pattern, and tape design. Metal zippers have distinct metal teeth, while plastic and coil zippers² feature molded or coiled teeth.

Step-by-Step Visual Identification

1. Check the Material

   • Shiny, metallic teeth = Metal zipper
   • Matte, uniform plastic teeth = Molded plastic zipper
   • Soft, flexible teeth = Coil zipper

2. Examine the Tooth Structure

   • Interlocking metal teeth = Metal zipper
   • Evenly spaced plastic teeth = Molded plastic zipper
   • Spiral or zigzag teeth = Coil zipper

3. Inspect the Tape

   • Fabric with a distinct coil pattern = Coil zipper
   • Fabric with individually attached teeth = Metal or plastic zipper

Practical Example

Imagine you have a jacket zipper:

• Teeth feel cold and metallic → Metal zipper
• Teeth are plastic and evenly spaced → Molded plastic zipper
• Teeth form a soft, continuous spiral → Coil zipper

What Are the Different Zipper Slider Types?

The slider is another key component when identifying zipper types.

Zipper sliders come in various designs, including auto-lock, semi-lock, and non-lock versions. Slider shape, locking mechanism, and branding can help identify the zipper type.

Common Slider Types

Slider Type	Features	Common Uses
Auto-lock	Locks when slider is released	Pants, jackets, bags
Semi-lock	Requires pull-tab tension	Backpacks, sportswear
Non-lock	Moves freely without locking	Boots, fashion accessories
Double-slider	Opens from both ends	Luggage, sleeping bags

How to Identify by Slider Design

• Auto-lock: Pull the slider halfway and release; if it stays put, it’s auto-lock.
• Non-lock: The slider moves freely when released.
• Double-slider: Two sliders move independently on the same track.

Why Does Zipper Size Matter in Identification?

Zipper size affects both function and appearance.

Zipper size is measured across the teeth when closed. Sizes are indicated by numbers like #3, #5, or #10, representing millimeters of tooth width.

How to Measure Zipper Size

1. Close the zipper.
2. Measure the width of the closed teeth in millimeters.
3. Match the measurement with the corresponding size number.

Example:

• 3 mm width = #3 zipper
• 5 mm width = #5 zipper
• 10 mm width = #10 zipper

Size and Application Guide

Zipper Size	Tooth Width (mm)	Typical Application
#3	3 mm	Dresses, shirts
#5	5 mm	Jackets, backpacks
#7	7 mm	Outdoor gear, boots
#10	10 mm	Luggage, tents

Larger sizes generally indicate stronger, more durable zippers, suitable for heavy-duty applications.

How Do Specialty Zippers Differ?

Not all zippers fit into the three main categories. Specialty zippers are designed for unique applications.

Specialty zippers include waterproof, invisible, and fire-resistant types, distinguished by their materials, coatings, and construction.

Common Specialty Zippers

1. Invisible Zippers

   • Teeth are hidden beneath the tape.
   • Found in dresses, skirts, and cushion covers.

2. Waterproof Zippers

   • Coated with TPU or PVC to block water.
   • Used in raincoats, tents, and marine gear.

3. Two-Way Zippers

   • Open from both ends.
   • Common in luggage and long jackets.

4. Fire-Resistant Zippers

   • Made with aramid tape and metal teeth.
   • Essential for firefighter and military uniforms.

How Can Branding and Markings Help Identify Zipper Types?

Manufacturers often stamp logos or model numbers on zippers.

Brand logos, model numbers, and specific engravings on sliders or tape provide clues about zipper type and origin.

Recognizing Popular Zipper Brands

• YKK: Global leader known for consistent quality.
• Riri: High-end zippers from Switzerland.
• Ideal: Common in North America.

How to Read Zipper Markings

1. Locate the engraving on the slider or back of the zipper tape.
2. Decode the letters (e.g., "YKK" for the brand).
3. Identify numbers indicating size (e.g., "5" for a #5 zipper).

Example:
A zipper marked "YKK 5VS" indicates:

• YKK: Brand
• 5: Size (5 mm)
• VS: Vislon, a type of molded plastic zipper

What Tools Can Help Identify Zipper Types?

While manual inspection works for most zippers, some tools can simplify the process.

Simple tools like calipers, magnets, and magnifying glasses can help distinguish zipper types by measuring teeth size, checking metal composition, and identifying patterns.

Essential Tools

• Caliper: Measures tooth width accurately.
• Magnet: Distinguishes magnetic metals like steel.
• Magnifying Glass: Reveals coil patterns and hidden markings.

Step-by-Step Tool Use

1. Use a Caliper: Measure the teeth width.
2. Test with a Magnet:
   • Magnetic = Steel teeth
   • Non-magnetic = Brass or aluminum teeth
3. Inspect with a Magnifying Glass:
   Look for subtle features like coil patterns or engraved logos.

Conclusion

Identifying zipper types involves examining the material, tooth pattern, slider design, and markings. Metal zippers are rigid and cold, molded plastic zippers³ have uniform plastic teeth, and coil zippers feature a soft, spiral pattern. Understanding these differences ensures better choices for repairs, replacements, or design projects.

---
